HP-NZ135A

Classification:Packaging testing machine
Views:7192

Tel:0531-85809007
Product details

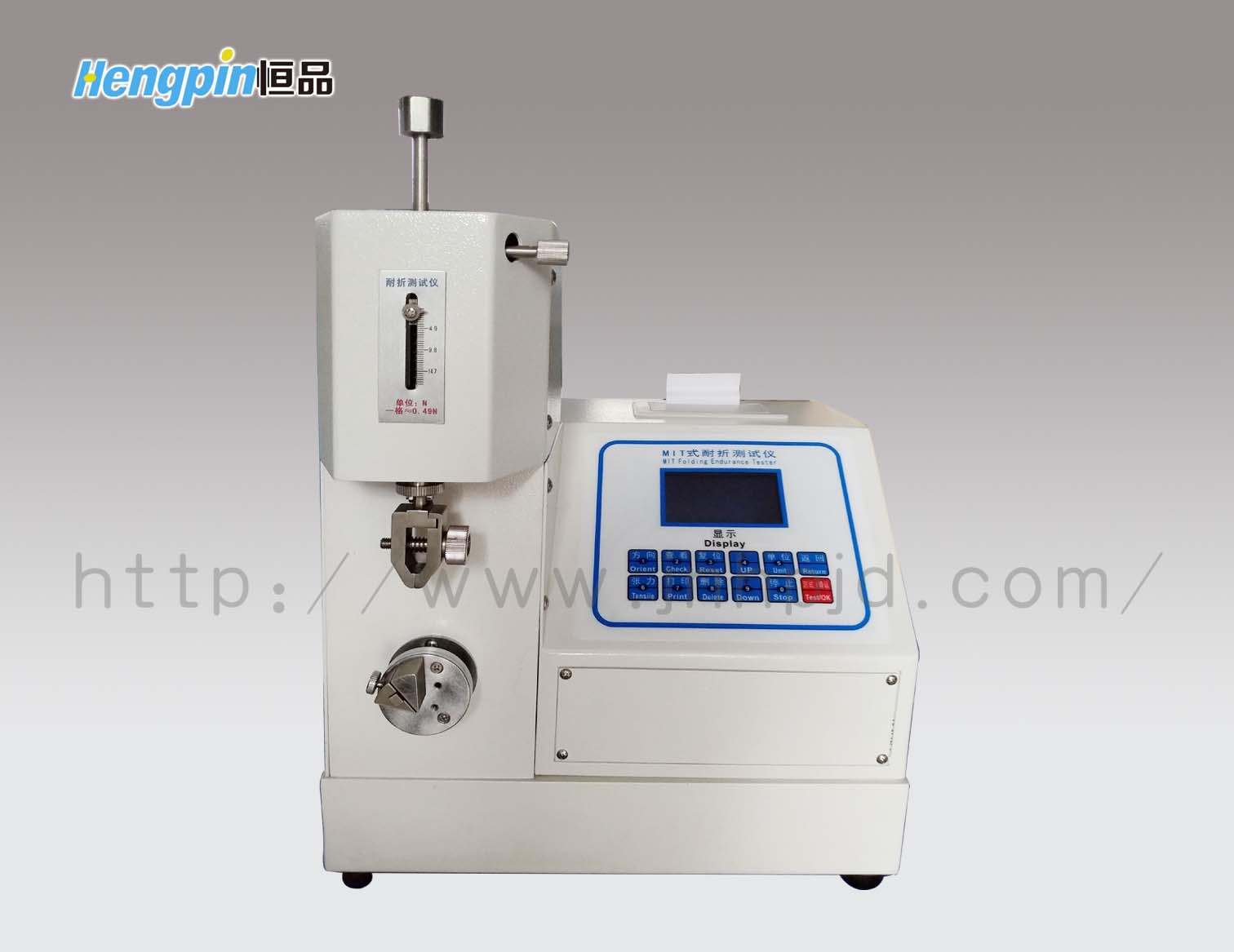

Folding HP-NZ135A type of MIT determination of instrument (also called folding apparatus, sheet folding apparatus, cardboard folding device) is dedicated instruments folding fatigue strength resistance determining thickness 1.25 mm below the paper, board and other sheet materials, paper - folding tester main technical indexes and performance parameters in accordance with the relevant national standards.
Product features
1, paper folding degree meter full computer control technology, high degree of automation, open structure, easy and convenient operation, stable and reliable performance and high precision.
2, paper folding tester full automatic test, intelligent judgment function.
3, statistics, print test results, and has the function of testing data storage.
4, Chinese graphics menu display operating interface, high-speed micro printer.
5, light mechanical and electrical integration of modern design concept, compact structure, beautiful appearance, convenient maintenance
Meet the standard
1, "GB/T 2679.5 paper and board of the determination of the degree of folding (MIT resistance to break meter method)"
2, "GB/T 457 paper and paperboard, the determination of the degree of folding"
3, "QB/T 1049 paper and board folding endurance tester"
4, "ISO 5626 paper, the measurement of the fold
technical parameter
1, measuring range: 1 times to 99999 times
2, folding angle: 135 degrees 2 degrees
3, the folding speed: 175 + 10 / min.
4, tension adjustment range: 4.9N ~ 14.7N
5, folding head sewing specifications: 0.25mm, 0.50mm, 0.75mm, 1.00mm (above four kinds of specifications for random, 1.25mm specifications can be based on customer matching, other special specifications can be customized according to customer requirements)
6, electric source: 50Hz AC220V
7, size: 305mm * 380mm * 420mm
8, weight: about 22kg
