HP-TD500

Classification:Packaging testing machine
Views:7103

Tel:0531-85809007
Product details

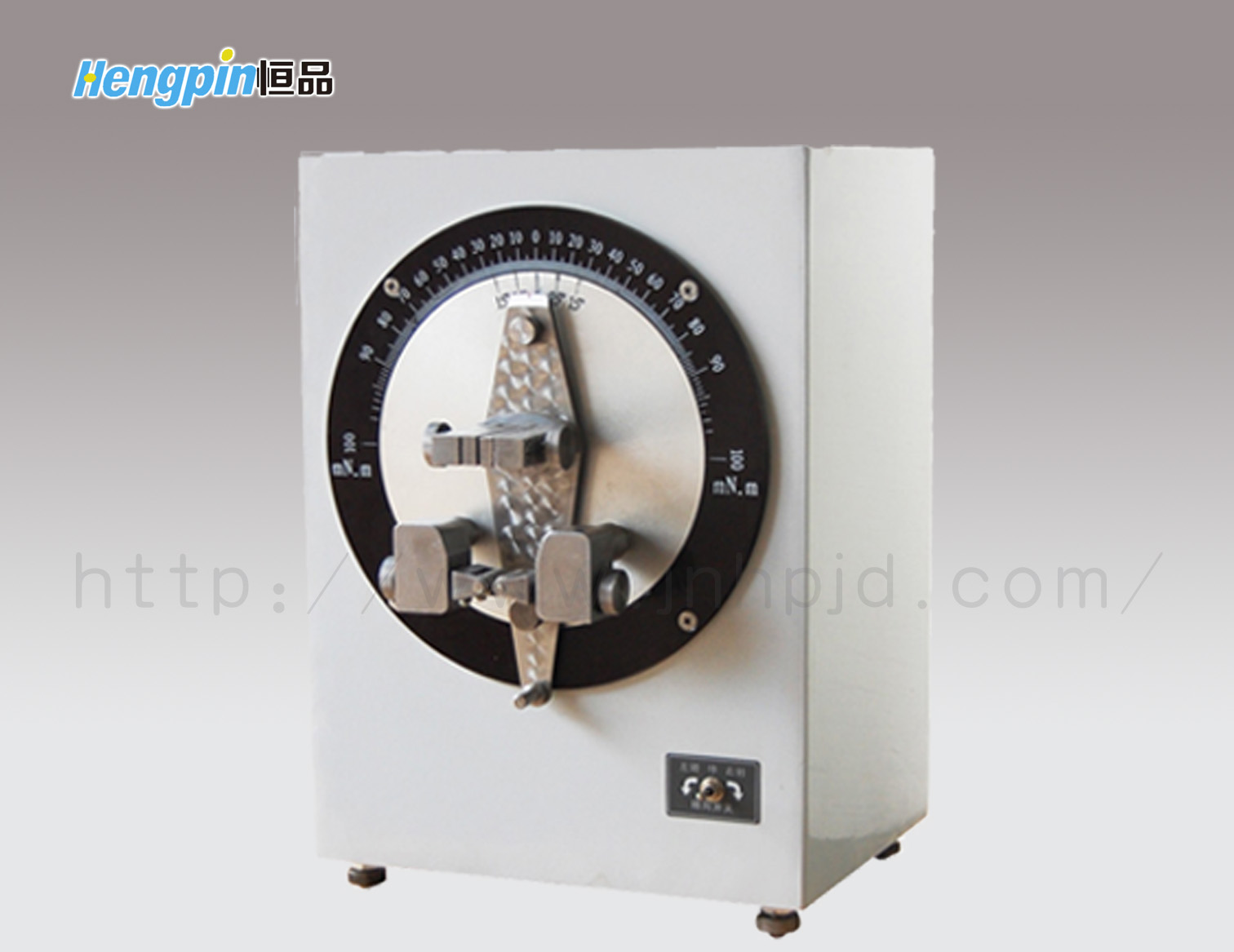

HP-TD500 cardboard type quite degree measuring instrument (also known as cardboard stiffness tester, stiffness of the paper instrument, stiffness instrument) is an international standard of general Taber, Taber) type stiffness tester, the main technical parameters of the instrument conforms to the relevant provisions of national and international standards. Stiffness is a measure of the anti bending strength index of paper and paperboard, Taber type stiffness tester is instrument for determining the indicators and Taber stiffness belongs to static bending strength indicators.
Product features:
1, Taber stiffness tester is according to the torque on the shaft center of the static balance principle of the design. By measuring the force or torque needed to be clamped at one end to a given point of view, the stiffness of the sample is obtained. The bending force of the sample is the same as that of the.
2, Taber stiffness tester is based on two-point loading method and moment balance principle of the design of a special test device. The instrument is composed of a transmission part, a measuring part and a supporting and mounting base part.
3, the transmission part of the motor through the intermediate drive chain to the angle, the angle of rotation to drive the paper frame work.
4, the measurement of the strength of the plate, the angle plate, diamond shaped body, paper clips, paper and other pieces of paper. Motor driven disc rotation, wheel angle on the paper pushing frame and rotate together, push the paper rack pushing paper round stick and sample contact specimen bending over. Sample holder to the paper clamp jaw, and a paper clamping device is arranged on the diamond of the swing body, in specimen rigidity under the action of specimen under force and diamond pendulum body subjected to moment action, the hem in the moment is pushed to rotate, when the pendulum body and angle relative to the disk rotation reached 15 DEG (or 7.5 degrees) stop. At the same time, the system reaches the moment balance. The zero line of the angle plate will indicate the torque value of the tested sample, which is expressed by M and mN.
Meet the standard
1, "GB/T 2679, 3 cardboard stiffness measurement method"
2, "ISO 2493 paper and cardboard stiffness measurement"
Technical parameter:
Instrument measurement range (1 ~ 500) m / mN, the entire measuring range is divided into seven files, each file is divided into files of thallium quality and strength plate index value:
Measurement range (m, mN)
Quality of grading heavy thallium
Intensity dial index
(m, mN)
number
Quality (g)
From 1 to 5
One
Five point zero nine eight
Zero Point Zero Five
From 1 to 10
Two
Ten point one nine seven
Zero point one zero
From 1 to 20
Three
Twenty point three nine four
Zero point two zero
From 5 to 50
Four
Fifty point nine eight six
Zero point five zero
From 10 to 100
Five
One hundred and one point nine seven two
One
From 20 to 200
Six
Two hundred and three point nine four four
Two
From 50 to 500
Seven
Five hundred and nine point eight six zero
Five
Note: 1mN M = 10cN - CM
The main technical indicators:
The number of items.
Technical index
Indication
Accuracy
Error of indication
+ 2% (stall measurement limit value of 10% ~ 90%)
Variation of indication
= 2% (stall measurement limit value of 10% ~ 90%)
Swing arm length
100mm
Load arm length
50mm + 0.1mm
Test speed
200 ~ /min
Rated bending angle
+ 7.5 degrees and + 15 degrees
The sample size (length * width)
70mm * 38mm
Dimensions (length * width * height)
270mm * 165mm * 355mm
quality
About 16KG
