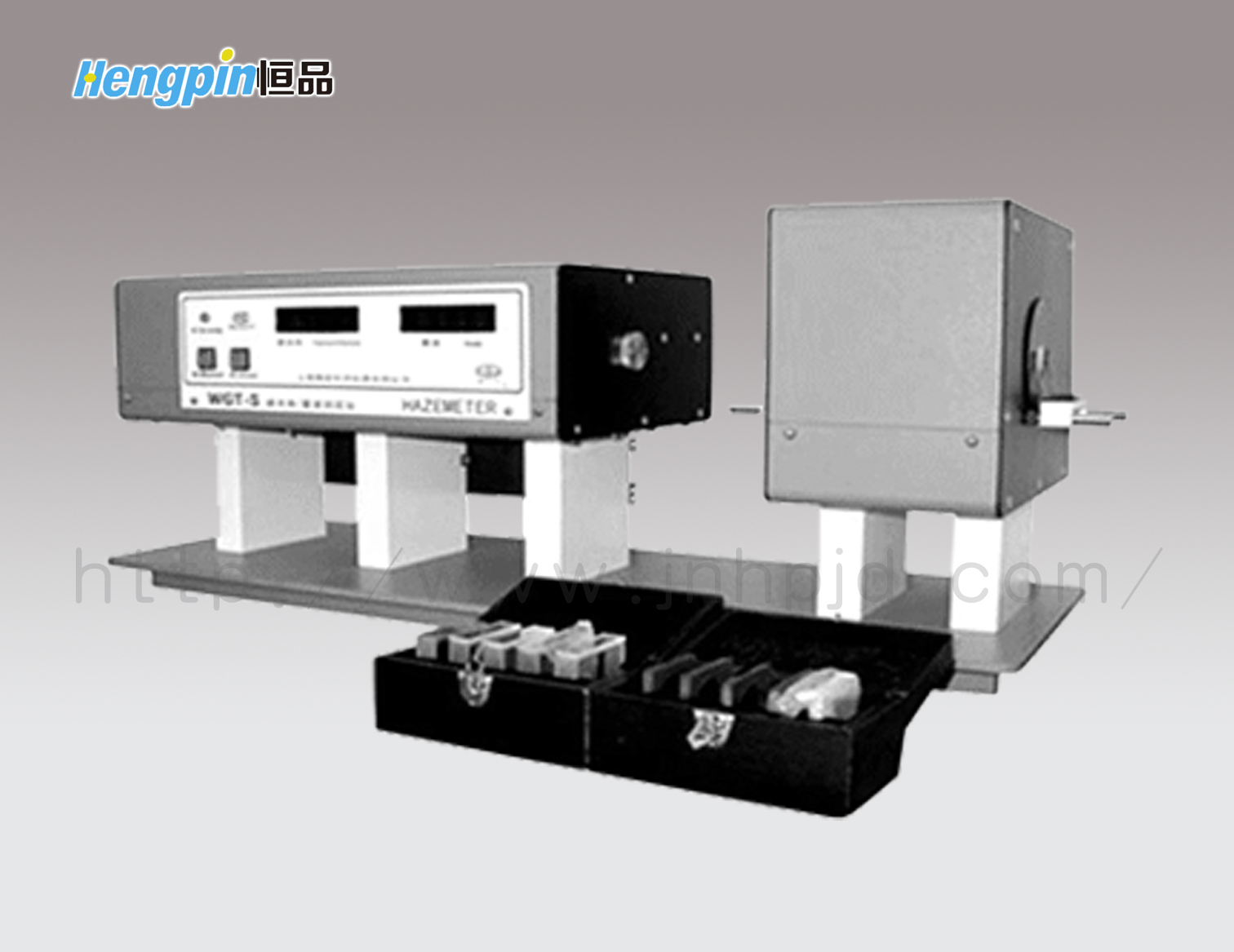

HP-WGW-S

Classification:Packaging testing machine
Views:6375

Tel:0531-85809007
Product details
Product use: apply to the determination of all transparent, translucent parallel to the plane of the sample (plastic plates, sheets, etc.) transmittance, haze test, liquid samples (water, drinks, etc.) of turbidity or clarity. Technical design in compliance with 2410-80 ASTM, D1033-61 JIS, k7105-81 GB and other standards. Computer automatic operation, easy to use, you can display the light transmittance, haze value, with standard print interface.
Instrument use environment:
1 room temperature: 10 ~ 30;
2 relative humidity is not more than 85%;
3 non corrosive gases;
4 no strong electromagnetic interference;
5 no direct sunlight;
6 the instrument should not be used in vibration effects;
7 power supply: 220V + 22V, 50Hz + 1Hz frequency.
Technical parameters:
1 closed sample module, sample size 50mm * 50mm;
2.C light source
3: Determination of light transmittance of 0% - 100% - 30% 0% haze;
Display mode: 4 LCD 3;
5 minimum reading: 0.1%;
6 accuracy: the light transmittance of 1% haze 0.5%;
7 repeatability: the light transmittance of 0.5% haze 0.1%;
8 power supply: AC 220V + 22V, Hz + 1Hz 50 frequency
9 instrument size L * B * H:470mmx270mmx160mm
10 instrument quality (net): 7 kg
According to the standard: GB2410 - 80 ASTM - 61 D1003 (1997)
