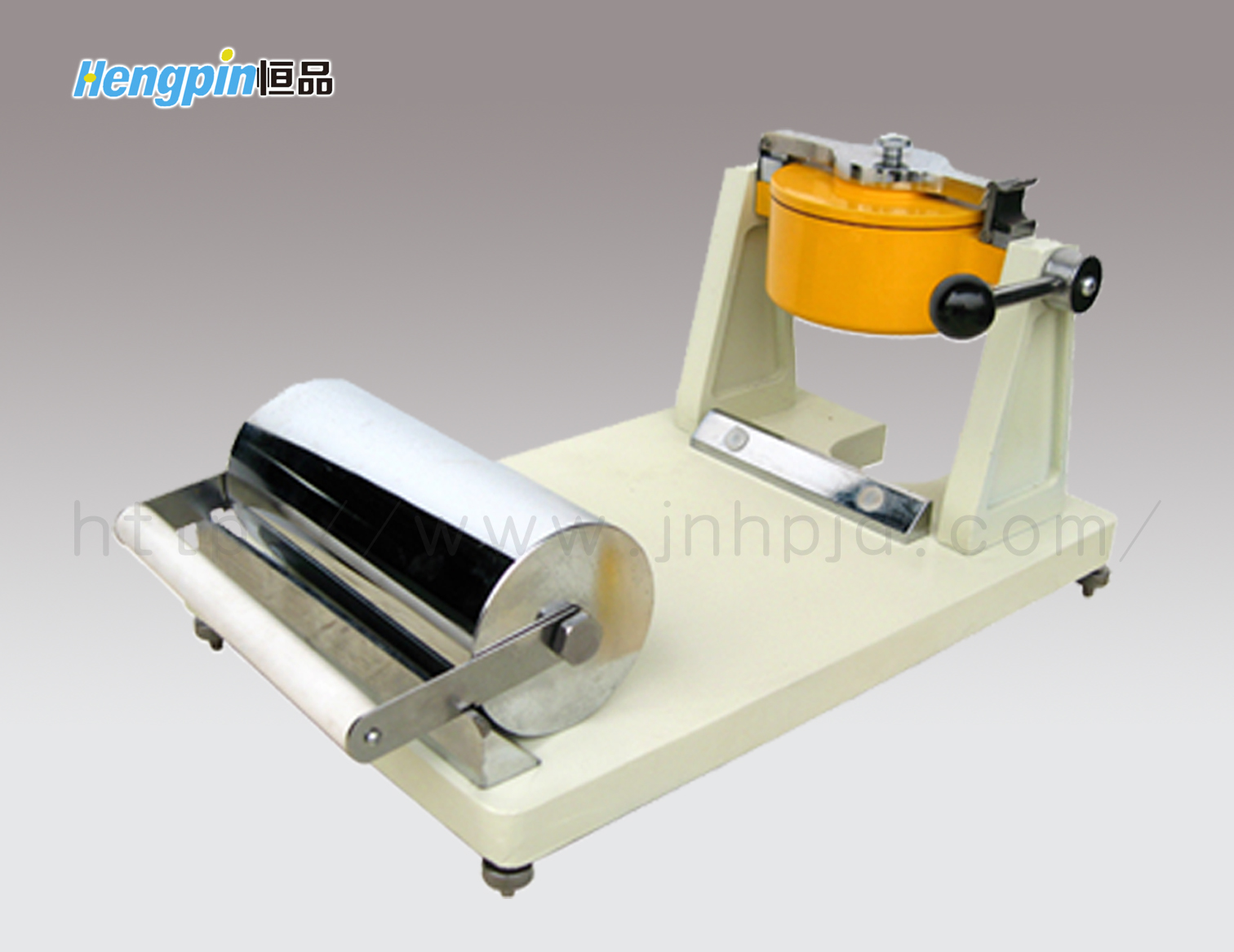

HP-XS100 type Cobb absorption determination instrument (also known as Cobb absorption determination instrument, Cobb water meter, water measuring instrument, surface absorption measuring instrument, the paper surface water rate determination instrument, water meter) is a special instrument for the determination of paper and paperboard surface water and the absorption of test methods Cobb (Cobb) test method test. The main technical indexes and performance parameters are in accordance with the relevant standards and regulations.
Product features:
1, the main technical indicators and performance parameters of the product in line with the relevant standards.
By 2, the international general Cobb test (Cobb) method, the test data of standard operation.
3, the press roller after plating processing, cup body, cup cover with aluminum, waterproof, rust.
Meet the standards
1, "1540 GB/T paper and board Determination of water absorption method (Cobb method)"
2, "535 ISO paper and board Determination of water absorption (Cobb) - Cobb method)"
Technical parameter:
1, the test area: 100 + 0.2cm2
2, pressure roller quality: 10 + 0.5kg
3, pressure roll length: 200 + 0.5mm
4, the test water: 100 + 5ml
5, size: 430mm * 270mm * 250mm
6, weight: about 28KG
