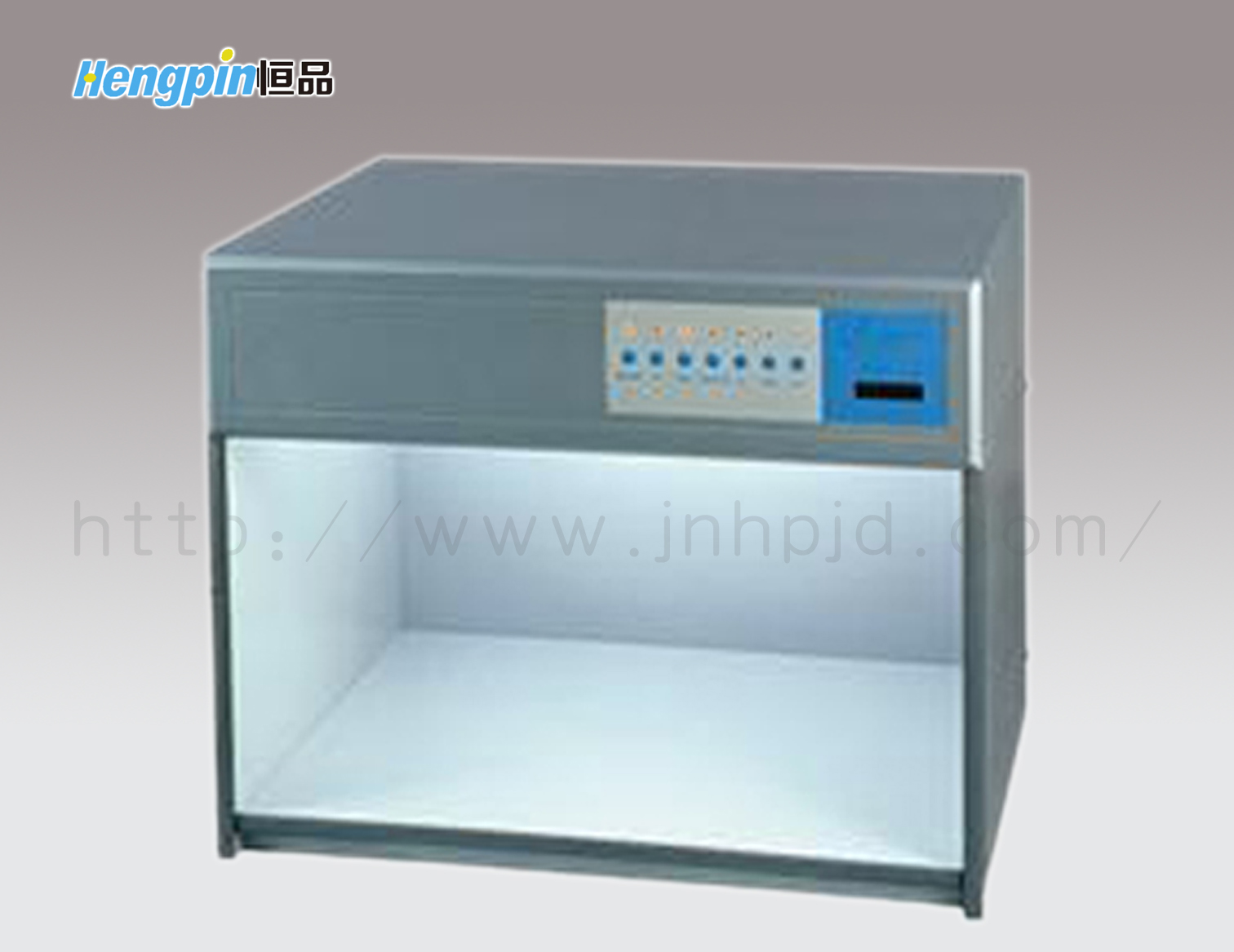

Standard light source for light color is widely used in textile, printing and dyeing, plastics, paint, ink, printing, pigment, coating, chemical, ceramics, shoes,
Leather, metal, chemical, furniture, electrical appliances, packaging, cosmetics and other industries in the field of color management.
Main effect:
The equipment is a special light source of color, color matching, so that the sample, production, quality inspection, acceptance in the same standard light source, accurate proof of the goods
Standard light source in the color light box with a variety of light sources for use as needed at any time to switch, such as D65, TL84, F, UV, etc.
Light source.
* recorded separately for each of the light sources of the use of time, to avoid the light pipe caused by excessive aging detection error.
9:28 possess the functions of the effect with different color spectrum, in a source, shown in the product color and requirements are the same, but in another light, the color differences cannot be accepted.
I work on the cloudy, night light color detection of goods color deviation is especially important to use standard light source.
Light source description
D65 international standard artificial daylight (Daylight Artificial)
Color temperature: 6500K power: 18W
TL84 Europe, Japan, China store light source
Color temperature: 4000K power: 18W
CWF American cold white store light source (White Fluorescent Cool)
Color temperature: 4150K power: 20W
F Hotel Familia with light, color reference light source
Color temperature: 2700K power: 40W
UV ultraviolet lamp light source (Ultra-Violet)
Wavelength: 365nm power: 20W
TL83 European standard warm white store light source (White Warm)
Color temperature: 3000K power: 18W
technical parameter
Configuration: D65, TL84, F, UV four kinds of light source
Weight: 30Kg
Volume (wide x deep x high) mm:710x420x570
