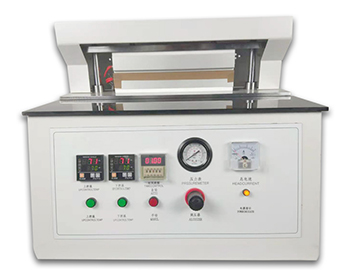

The heat sealing method of HP-RF300A was used to measure the heat sealing temperature, heat sealing time, heat sealing pressure and other parameters of plastic film base material, soft package composite film, coated paper and other heat sealing compound film. Thermal sealing materials with different melting point, thermal stability, fluidity and thickness can show different heat sealing performance, and the sealing process parameters may vary greatly. Heat sealing test instrument, through the standardization of the design, standardized operation, can obtain accurate heat seal test index. For manufacturers of plastic soft packaging for food, milk packaging, food packaging, pharmaceutical packaging, cigarette factory etc., laboratory and testing the test making process. Is a necessary instrument for QS certification of packaging enterprises.
Special sign
1 full digital display, high precision, simple operation, easy to use.
2 heat sealing temperature, time and pressure can be adjusted and controlled.
3 ultra long ultra wide hot cover design, heat sealing temperature uniformity.
4 special high temperature resistant and anti stick knife liner, ensure the high life of the heat sealing knife.
5 unique air filtration device to improve the stability of the host.
Technical index
Heat sealing temperature: room temperature to 300
Temperature control accuracy: + 0.2
Heat sealing time: 0.1 ~ 999.9s
Heat sealing pressure: 0.05 MPa ~ 0.7MPa
Thermal sealing surface: 330mm * 10mm (can be customized)
Heating form: single or double heating
Gas pressure: 0.05 MPa ~ 0.7MPa (gas source user owned)
Air interface: diameter of 6mm polyurethane tube
External dimensions: 536 mm (L) x 335 mm (B) x 413 mm (H)
Power source: 220V 50Hz AC
Net weight: 45kg
Standard
QB/T 2358 (ZBY 28004), F2029 YBB, ASTM 00122003
Matching
Standard configuration: host, pedal switch power supply line
Note: the air interface system with 6mm source user owned polyurethane tube.
