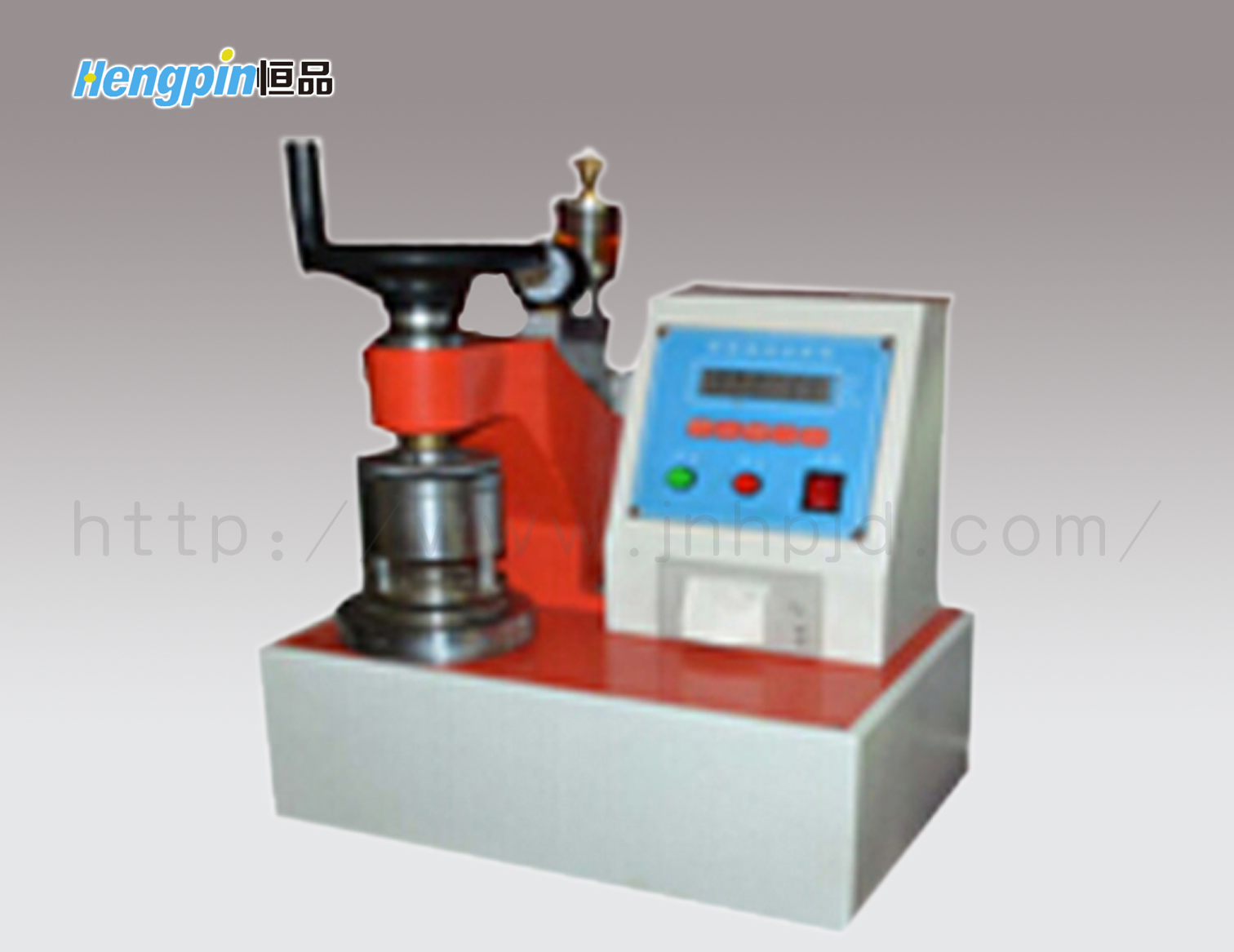

HP-NPD1600S type computer control paper resistant broken meter (also known as the paper bursting for the determination of the instrument, paper anti broken instrument, bursting strength tester) is a basic instrument in measuring strength properties of paper (paper test instruments), the sensor has the advantages of high precision, high-speed processing chip design, ensures the sampling accuracy. Its various performance parameters and technical indicators in line with the relevant national standards, applicable to carton packaging, paper industry and quality inspection, commodity inspection and other departments of the strength test. The instrument is divided into manual and pneumatic, and the machine is operated manually.
Product features
1, the high precision of the instrument, computer automatic test, simple and convenient operation, stable and reliable performance.
2, LCD screen display, Chinese menu operation interface, the test, real-time display test values, sample change curves and other information.
3, automatic measurement of the sample, smart lock peak, strong data display and analysis management capabilities, 99 sets of data storage, printing function, fault alarm and sensor nonlinear correction function.
4, with kPa, kgf/cm2, lbf/in2 between the three units of the switching function.
5, equipped with a micro printer, display the contents are: test index number, test time, test data and related standards.
Standard
1 GB/T 454, "Mullen determination"
2, the "ISO 2758 paper - Determination of the degree of" breaking resistance
technical parameter
1, measurement range: 50kPa ~ 1600kPa
2, accuracy: <0.5% (measured within 0.3%)
3, resolution: 1kPa
4, oil feeding speed: 95 + 5ml/min
5, the film resistance: raised 9mm, 30 + 5kPa
6, the sample clamping force: 430kPa (adjustable)
7, the upper clamp ring hole diameter: diameter (30.5 + 0.05) mm
8, lower clamping ring hole diameter: diameter (33.1 + 0.05) mm
9, power source: AC220V 3A 50Hz
10, size: 530mm * 360mm * 590mm
11, weight: about 83kg
